Rotary Joint

A rotary joint, also referred to as a rotary union or rotating union, is a rotary sealing device that connects rotating equipment to fixed piping for the transfer of steam, water, thermal oil, coolant, hydraulic oil, air, and other media.

We invented the rotary pressure joint in 1930. Since then, we have incorporated advances in sealing technology from carbon pressure seals to balanced seals and DuraSeal™ sealing technology. Rotary joint design and materials have evolved as well to extend the application range and service life of the conventional pressure-type rotary joint.

All Steam Hot/Cold Water Thermic/Hot Fluid

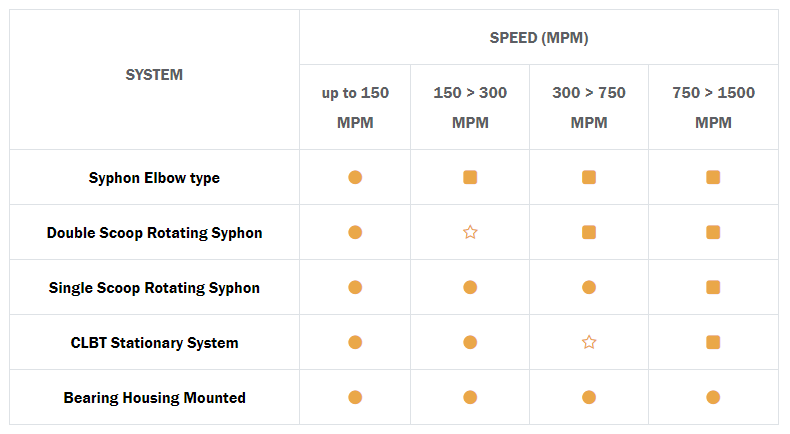

Comparison Chart

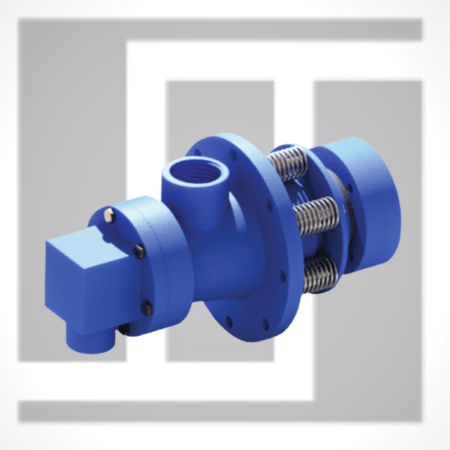

HS-1

Speed upto 1500 MPM (300 RPM )

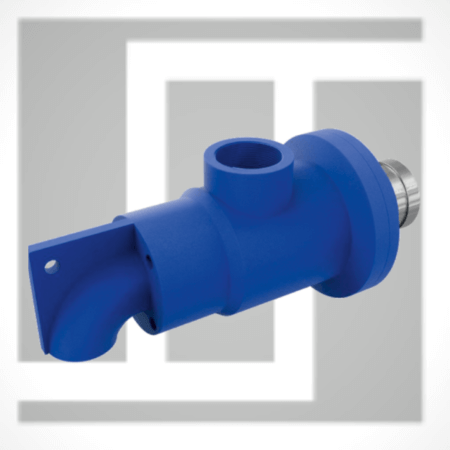

SBRJ

Speed upto 500 MPM (150 RPM )

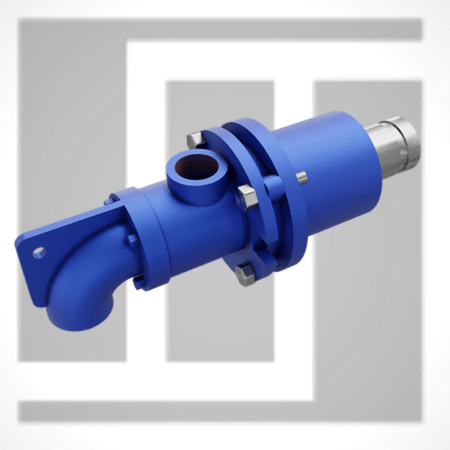

LS-1

Speed upto 500 MPM (100 RPM)

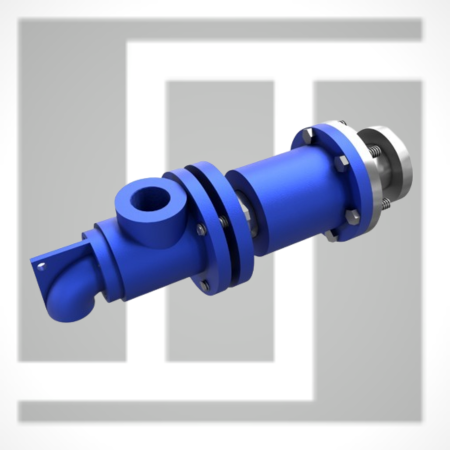

BRSS

Speed upto 500 MPM (150 RPM)

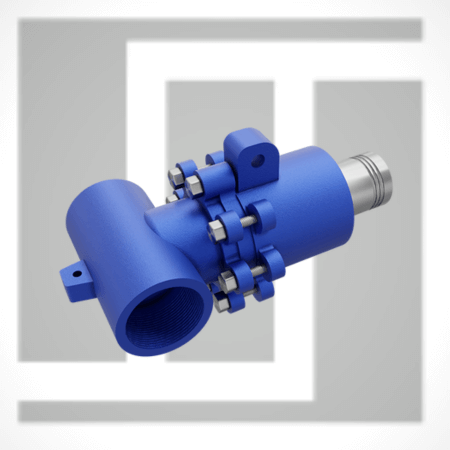

SBP

Speed upto 500 MPM (30 RPM)

SA

Speed upto 300 MPM (100 RPM)

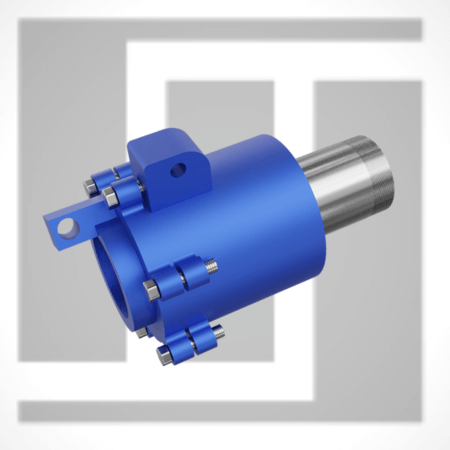

SC

Speed upto 300 MPM (100 RPM)

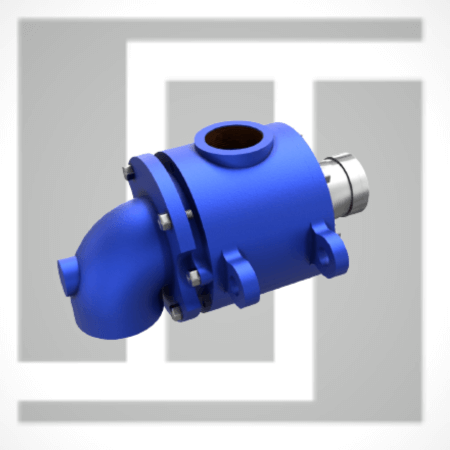

LNAR TYPE ROTATING ROTARY JOINT(HIGH SPEED )

Speed upto 700 MPM (200 RPM)

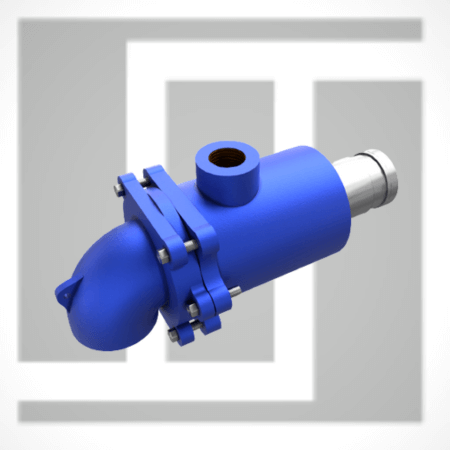

SN TYPE ROTATING ROTARY JOINT (LOW SPEED )

Speed upto 200 MPM (50 RPM)

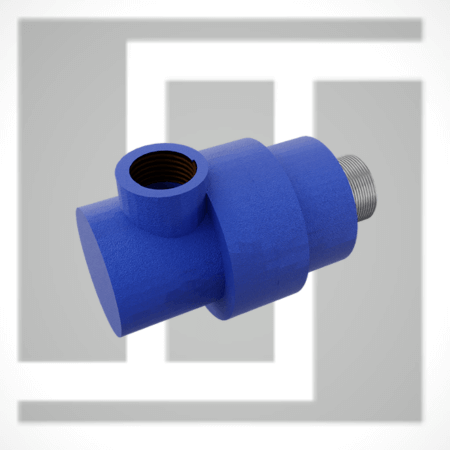

SINGLE FLOW

Speed upto 2000 MPM (1000 RPM)

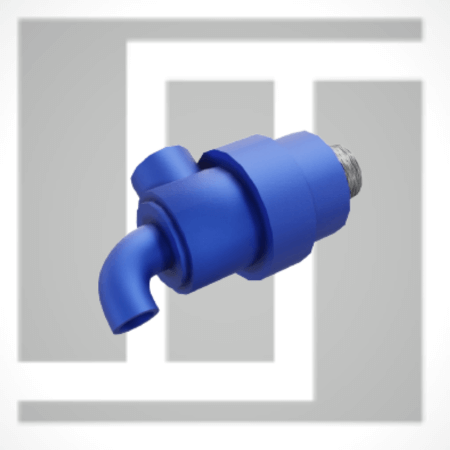

DUAL FLOW

Speed upto 2000 MPM (1000 RPM)

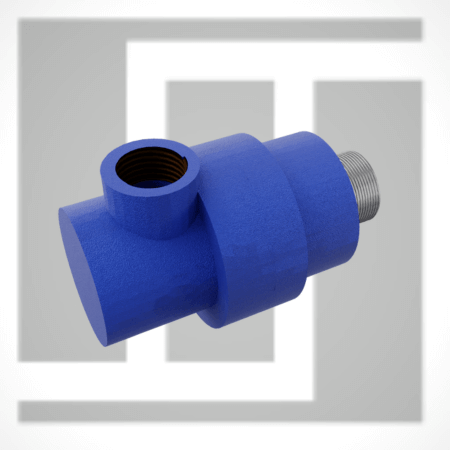

SINGLE FLOW BUSH TYPE

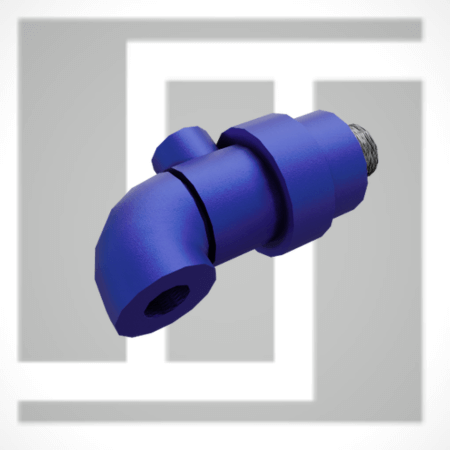

DUAL FLOW BUSH TYPE

Comparison Chart

Stationary Type Rotary Joint

Rotating Type Rotary Joint

SINGLE FLOW

Speed upto 2000 MPM (1000 RPM)

DUAL FLOW

Speed upto 2000 MPM (1000 RPM)

SINGLE FLOW BUSH TYPE

DUAL FLOW BUSH TYPE
