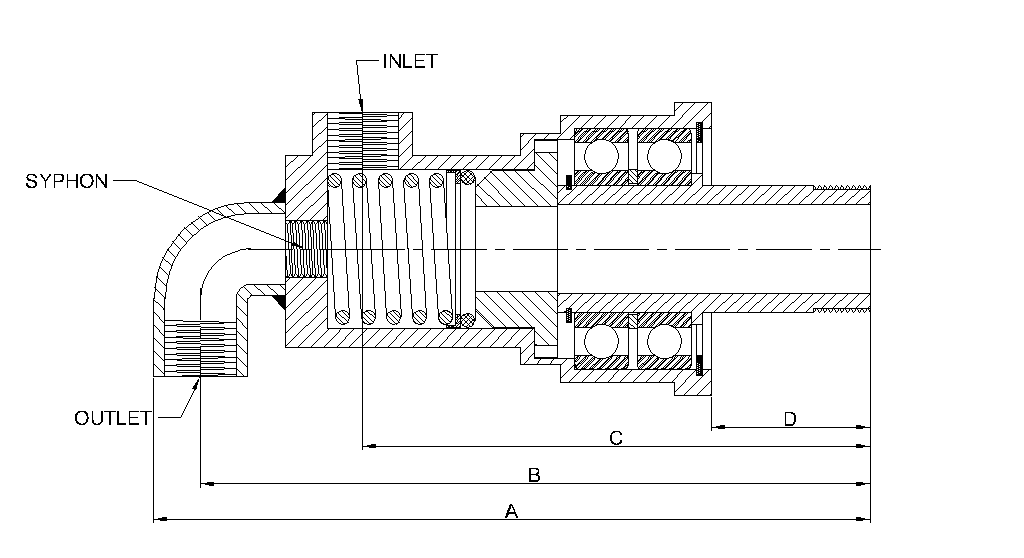

SIZE |
INLET |
OUTLET |
SYPHON |
A |
B |
C |
D |
|
1" |
1" |
1/2" |
1/2” |
244.5 |
228 |
158 |
54 |
|
1 1/4" |
1 1/4" |
3/4" |
3/4" |
262 |
243 |
172.5 |
57 |
|
1 1/2" |
1 1/2" |
3/4" |
3/4" |
262 |
243 |
172.5 |
57 |
|
2" |
2" |
1" |
3/4" |
353 |
330 |
223.5 |
76 |
|
2 1/2" |
2 1/2" |
2" |
1" |
413.5 |
376 |
252 |
77 |
|
3" |
3" |
2" |
1" |
413.5 |
376 |
252 |
77 |
| TECHNICAL SPECIFICATION | |
|---|---|
| SIZE | 1/4″ to 5″ |
| PRESSURE | UP TO 30 KG/CM2 |
| TEMPERATURE | UP TO 100º C |
| SPEED | UP TO 2000 MPM (1000 RPM) |
| MEDIA | HOT/COLD WATER |
These types of rotary joints are used for hot and cold water. They have five basic components: housing, shaft, bearing, seals and spring.
