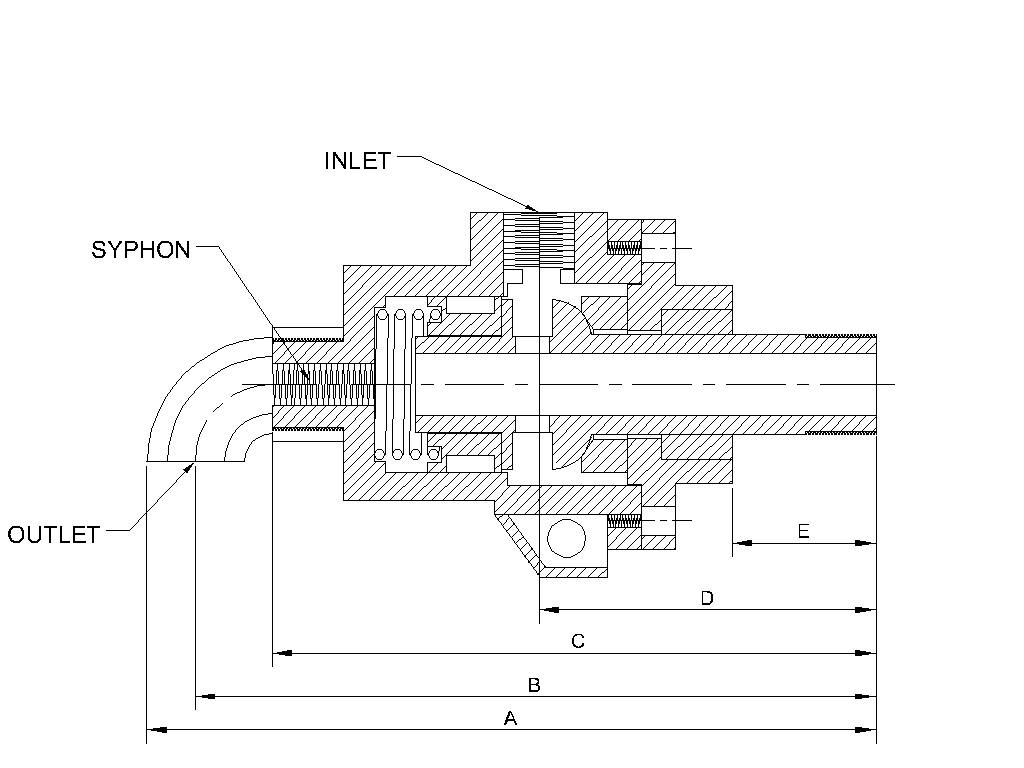

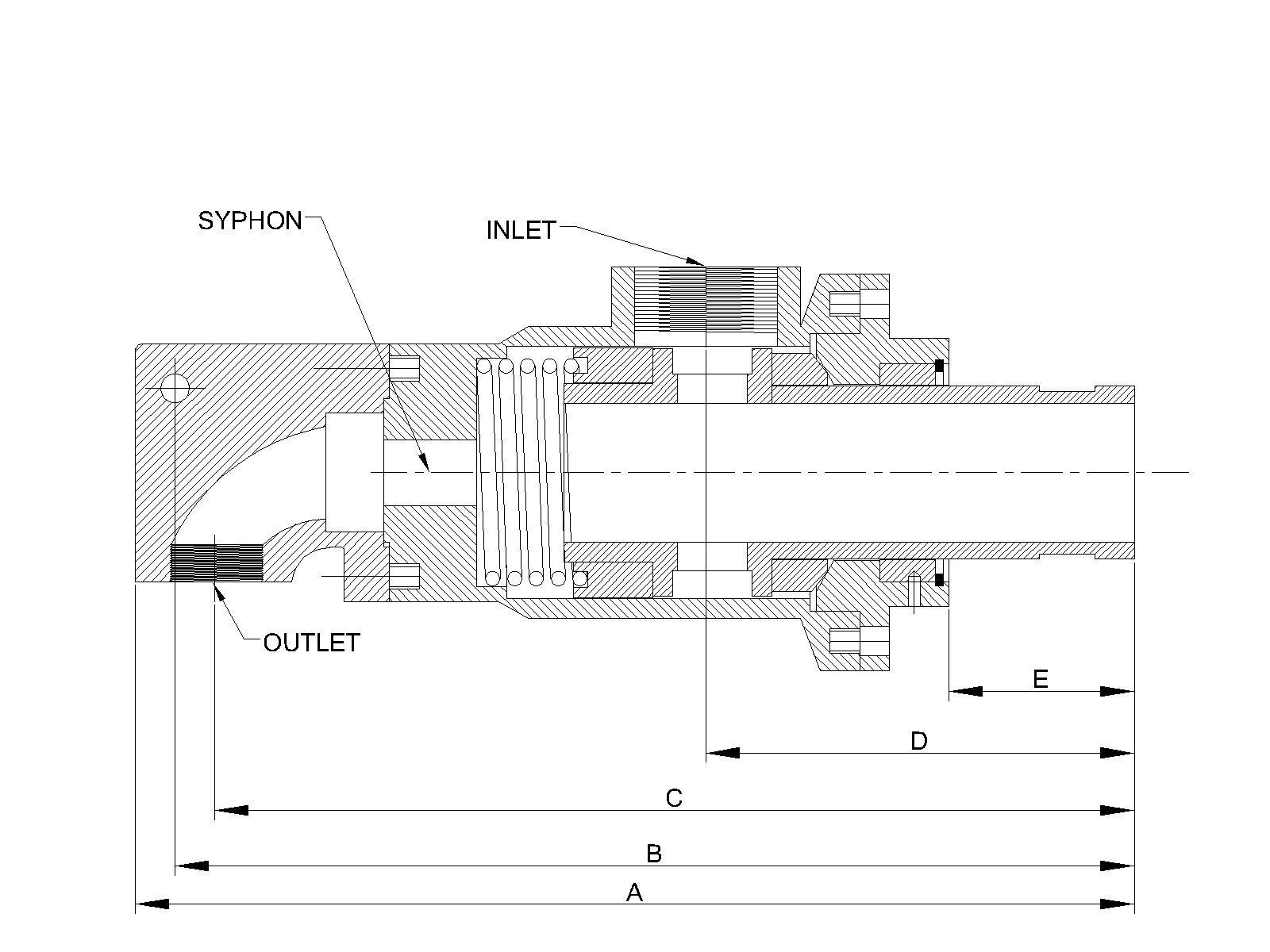

SIZE |
INLET |
OUTLET |
SYPHON |
A |
B |
C |
D |
E |
|
1" |
3/4" |
1/2” – 3/4" |
3/8" |
258.5 - 266 |
N/A |
242 - 247 |
118.5 |
50.5 |
|
1 1/4" |
1" |
1/2” – 3/4" |
1/2" |
265.5 - 273 |
N/A |
249 - 254 |
124 |
52 |
|
1 1/2" |
1 1/4" |
3/4" |
3/4" |
302.5 |
N/A |
280 |
134 |
56.5 |
|
2" |
1 1/2" |
1" |
3/4" |
437.5 |
422.5 |
405 |
175 |
80 |
|
2 1/2" |
2" |
1 1/2" |
1" |
474 |
454 |
433 |
198 |
93 |
|
3" |
2 1/2" |
1 1/2" |
1" |
506 |
486 |
466 |
218.5 |
95 |
| TECHNICAL SPECIFICATION | |
|---|---|
| SIZE | 1" TO 4" |
| PRESSURE | 0.5 to 12 barg |
| SPEED | Up to 500 MPM (150 RPM) |
| TEMPERATURE | 100° to 300° C |
| MEDIA | Steam |
This is a newly designed rotary joint specially designed for low maintenance and easy installation. This is a self-supported rotary joint, as on the nipple side there is a bush for the body support.
