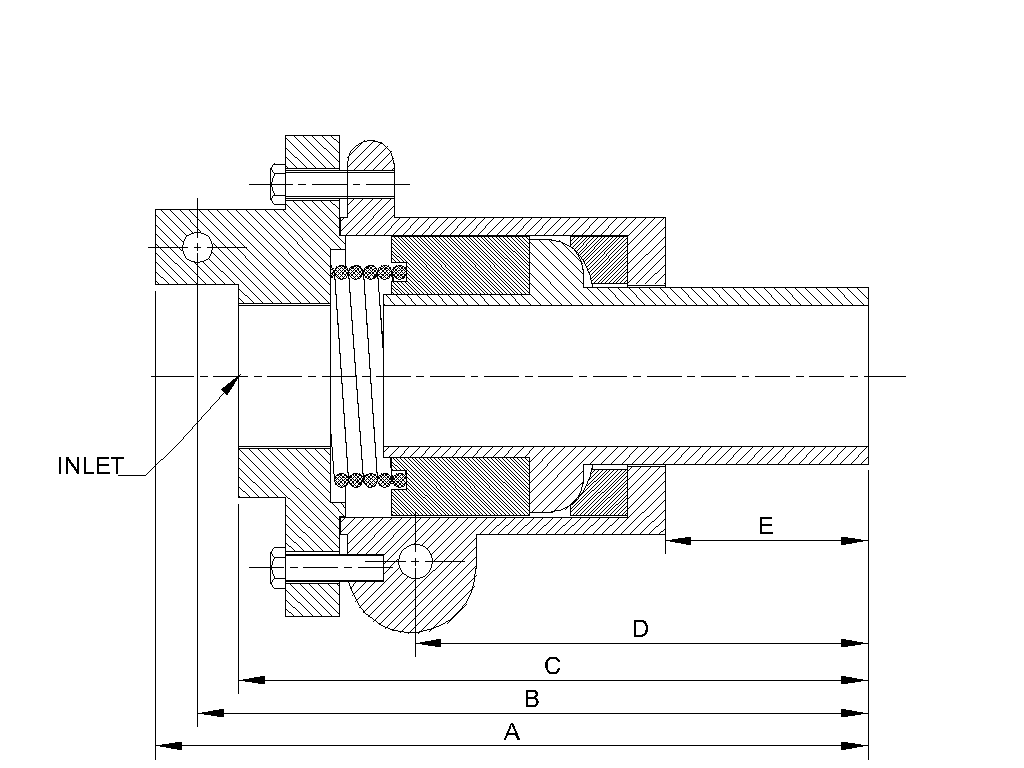

SIZE |
INLET |
A |
B |
C |
D |
E |
|
3" |
3" |
326.5 |
306.5 |
288.5 |
212.75 |
95 |
|
4" |
4" |
396.5 |
378.5 |
354.5 |
283 |
123 |
| TECHNICAL SPECIFICATION | |
|---|---|
| SIZE | 3/4″ to 4″ |
| PRESSURE | 0.5 to 5 barg |
| TEMPERATURE | 100º to 300º C |
| SPEED | Upto 300MPM (100 RPM) |
| MEDIA | Steam |
This type of rotary joint is needed when, from one side, steam is entered into the cylinder and, from another side, condensate comes out.
